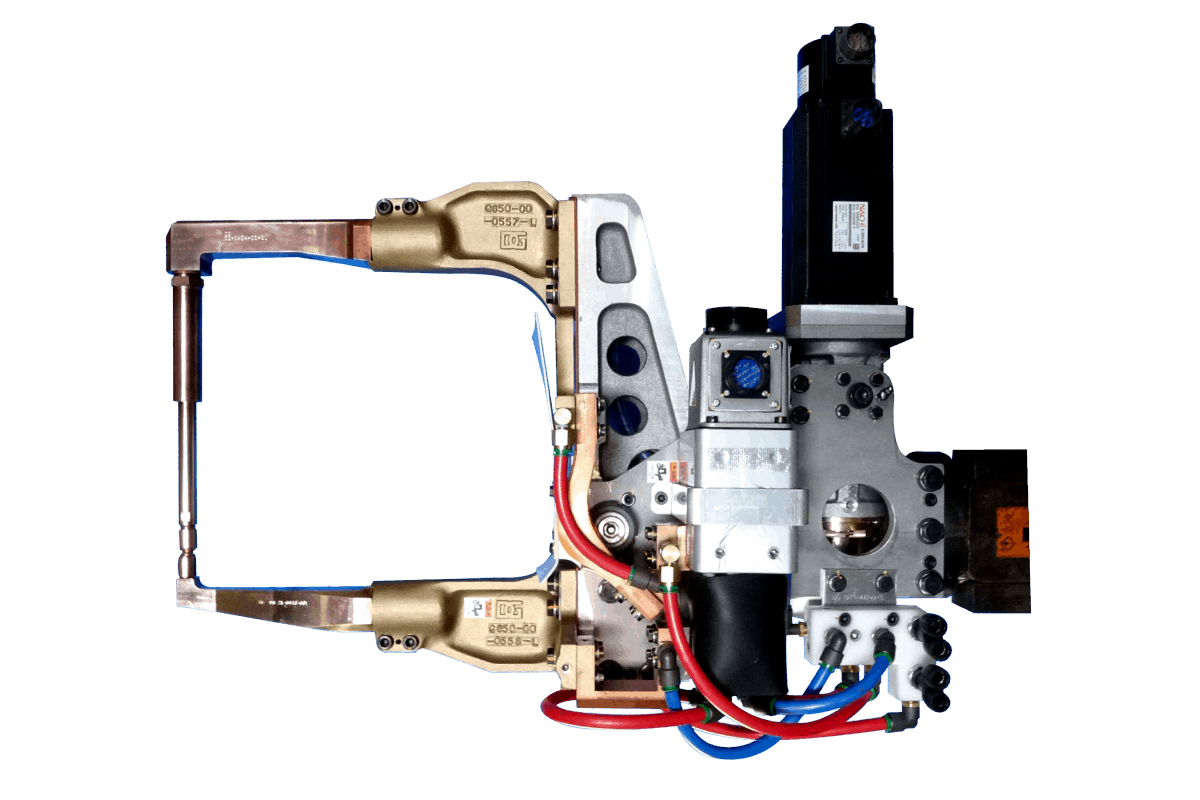

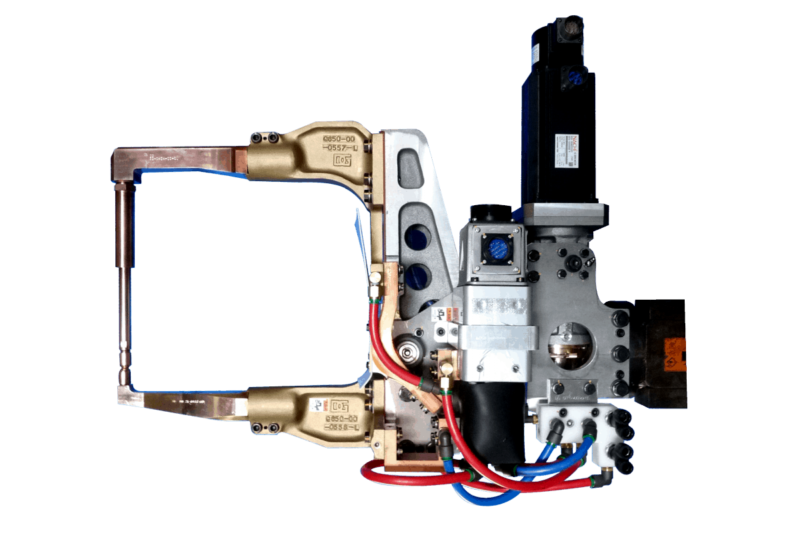

High force medium and large X3 types in the lightweight X-gun series. The large type comes with 800mm throat depth.
Force up to 5 or 7kN and short circuit current up to 18,000A.
- Medium and large X3 types
- Up to 7kN force with the newly developed high thrust drive unit
- Throat depth up to 800mm
- Compact drive unit developed by Dengensha
- 5000 RPM high speed servo motor
- Motor turning kit for lightweight gun
HIGH FORCE LIGHTWEIGHT X-GUN
| MEDIUM | LARGE | |
|---|---|---|
| Max. Short Circuit Current | 18,000A | 18,000A |
| Equivalent Continuous Current | 5,728A | 5,728A |
| Max. Force | 5 – 7kN | 3.5 – 5kN |
| Throat Depth | 250 – 500mm | 500 – 800mm |
| Duty Cycle | 13% | 13% |
| Mass | 66 – 77kg | 82 – 90kg |
