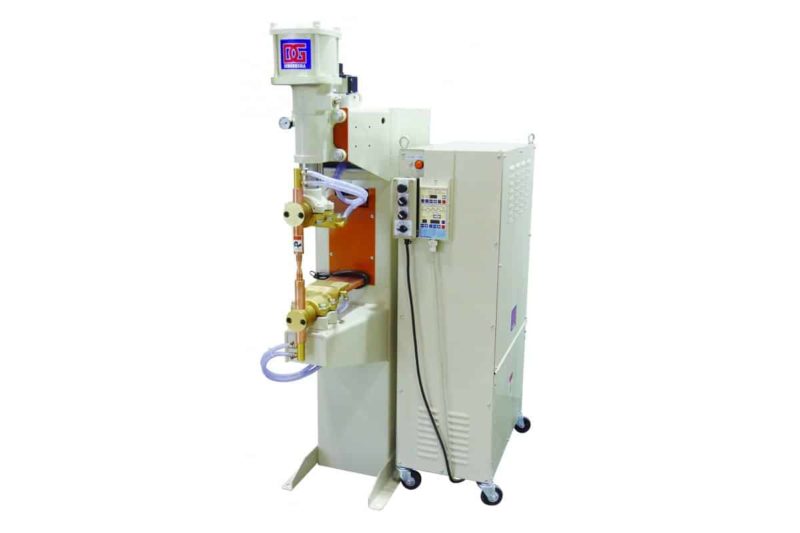

Dengensha America’s NDZ series capacitor discharge welder with compact design and intuitive control set-up will provide maximum part quality and broad new range of part production opportunities and potential.
- Smaller footprint with cost-efficient compact design.
- Weld current as high as 50kA, yet requiring only a small 6kVA and 200V,
- 460/480V power supply.

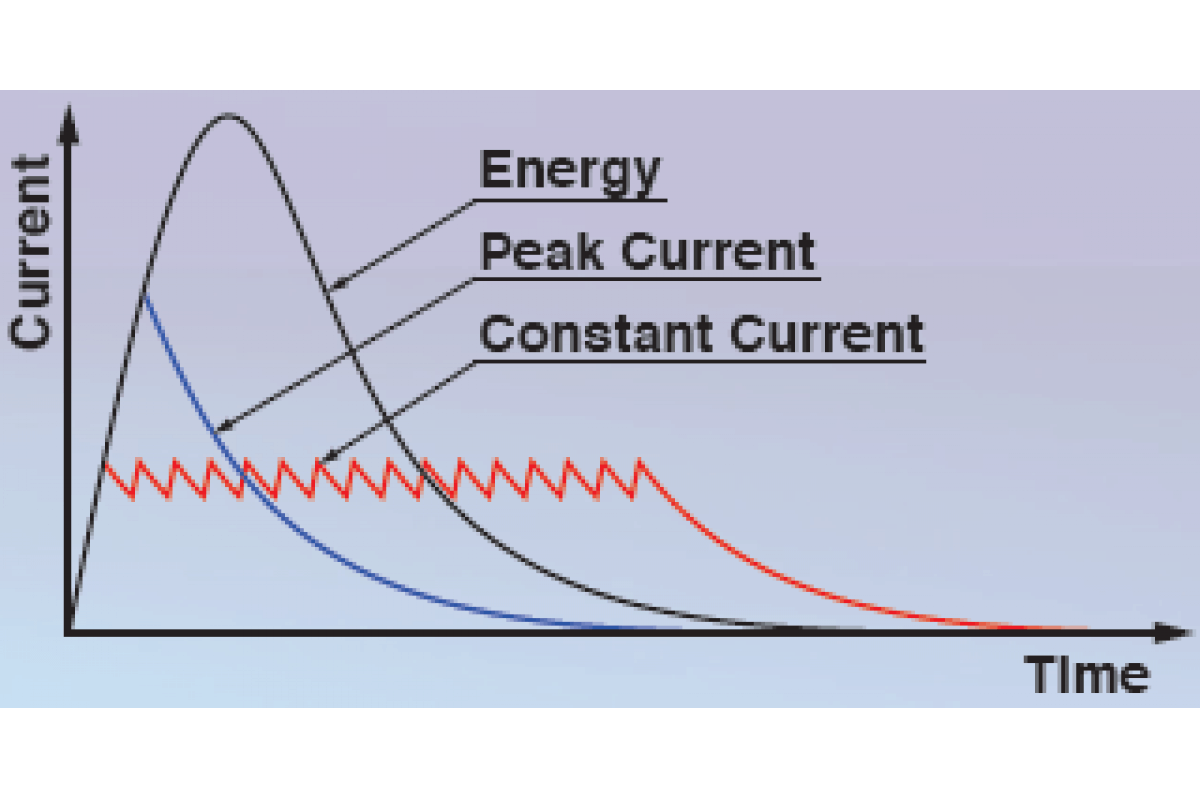

- Unique selectable current control modes will enable fine tuning of weld quality.
- High current in short bursts allows minimum heat transfer and workpiece distortion.
- Consistent welding during unstable power supply conditions.
Maximum energy output of 3,000 joule. - Constant current feedback standard.
- Ideal for welding small projection parts on high-strength and hot stamp steel.
NDZ SERIES CAPACITOR DISCHARGE WELDER
| MODEL | RATED CAPACITY |
MAX. SHORT CIRCUIT CURRENT |
MAX. FORCE |
|---|---|---|---|
| NDZ-CA0-46B*J-Y-D | 6kVA | 50000A | 6kN |
| NDZ-CA0-47B*J-Y-D | 6kVA | 50000A | 6kN |
| NDZ-CA0-48B*J-Y-D | 6kVA | 50000A | 6kN |
| NDZ-CA0-41B*J-Y-D | 6kVA | 50000A | 10kN |
